Pioneer 520
Honda Pioneer 520 For Sale Midland
Review Honda Pioneer 520 Transalp Bike Specifications, Features & Colours Available at Powerforce Midland

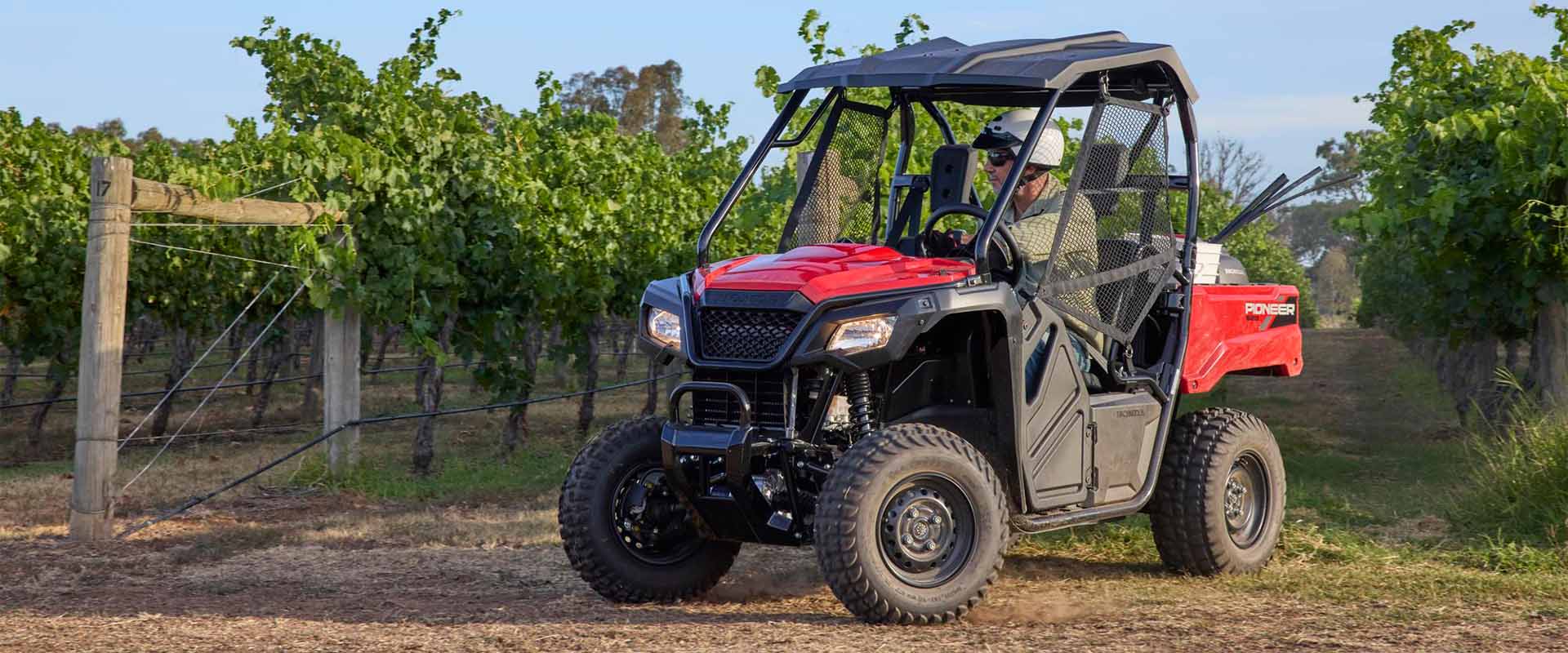

Honda’s Pioneer 520 is the perfect choice for multiple farmers, as its overall size, powerful 518cc engine and strut-assist tilt tray make it incredibly versatile. It comfortably seats two, and can easily be loaded up making transportation between locations easy. You also get features including automatic transmission with AT/MT modes, and selectable two- or four-wheel drive.
Hard working
Strut assisted tilt tray, 453kg towing capacity.
Versatility
Automatic or manual shift, selectable 2WD/4WD
Performance
Powerful fuel injected 518cc engine, longitudinally mounted
Practicality
Compact size, comfortable seating for driver and passenger
Book a Test Ride
Schedule your Honda test ride today at Powerforce Midland.
Available Colours
Hero Red
-
Automatic electronic shift transmission
-
Compact size, ideal for tight terrain
-
TraxLok 2WD/4WD system
-
Direct drive with longitudinal engine mounting
-
Adjustable front and rear suspensions
-
Price includes roof, tow hitch & tow ball fitted, and pre delivery costs
Get a Quote
Powerforce Midland – where your quote is just a click away.
Features
Key Highlights
518cc engine
The 518cc engine features electronic fuel injection for effortless cold-weather and high-altitude operation. It is specially tuned for low-rpm torque, too. The mounting is longitudinal, and by orienting the crankshaft front to back in the chassis, we route the flow of power straight to the wheels without any right-angle detours, reducing powertrain friction and putting more grunt to the ground.
Suspension
The Pioneer 520 features dual-rate springs, and after one ride you’ll feel the difference. You get a smoother ride over smaller bumps with more bottoming resistance on bigger bumps, along with a more confident steering feel. Both front and rear suspensions are fully independent double wishbone type, and have preload adjustability.
Automatic transmission
You can let the automatic transmission shift for you, or you can still shift yourself with its paddle shifters. You can even shift from auto to manual (AT to MT mode) on the fly. Unlike the belt-drive automatics out there, the Pioneer 520 features a transmission that uses rugged, steel gears. You get true compression braking for superior controllability (especially when descending hills), as well as long transmission life.
Tilt bed
The super-convenient tilt/dump bed measures 983mm wide, 658mm long and 249mm high, and can carry up to 204kg. An assist strut makes dumping easy, the tailgate opens flat, and the inside of the bed is set up for plywood dividers, or to hold milk crates or plastic buckets. It also accommodates our exclusive line of Pro-Connect™ accessories.
TraxLok 2WD/4WD
Our rock-solid TraxLok system lets you choose either 2WD or 4WD, giving you the freedom to choose between lighter steering (in 2WD) and maximizing available traction (in 4WD) when you need it most.
Compact size
The 127cm overall width is a huge bonus. Whether it’s for tight trails or convenient transportation and storage, the Pioneer 520 can go where most other side-by-sides can't!
Digital display
The multi-function digital dash display is full of the information you want. In addition to the standard gear position indicator, speedometer, odometer, trip meter, and hour meter—you get readouts for fuel level, clock, coolant temperature and Honda's "maintenance minder" system.
Request a Brochure
Discover the model — request your brochure today at Powerforce Midland!
Technical Data
BRAKES (F)
2x 200mm disc
BRAKES (R)
1x 170mm disc
Front Adjustability
preload
FRONT SUSPENSION TYPE
Independent double-wishbone
FRONT WHEEL TRAVEL(MM)
147
Rear Adjustability
preload
REAR SUSPENSION TYPE
Independent double-wishbone
REAR WHEEL TRAVEL(MM)
150
CAPACITIES
15.4
BED DUMPING ANGLE
-
TURNING RADIUS(M)
3.9
WHEELBASE
1,855
BED HEIGHT(MM)
249
BED LENGTH(MM)
658
BED WIDTH(MM)
983
GROUND CLEARANCE(MM)
217
OVERALL HEIGHT(MM)
1,809
OVERALL LENGTH(MM)
2,668
OVERALL WIDTH(MM)
1,270
SEAT HEIGHT(MM)
703
KERB WEIGHT(KG)
482
BED/TRAY WEIGHT CAPACITY(KG)
204
KERB WEIGHT(KG)
137
MAX WEIGHT CAPACITY(KG)
400
TOWING CAPACITY(KG)
454
BORE & STROKE(MM)
9.5:1
COMPRESSION RATIO
96 x 71.5
Cylinders
1
DISPLACEMENT(CC)
518
Engine Type
Liquid-cooled 4-stroke
Fuel System
Fuel Injection
Starter
Electric
Valves
2
DRIVE MODES
2WD, 4WD
TRANSMISSION
5-speed with reverse; manual and automatic modes
Drive
Shaft
TYRES(F)
24X8-12
TYRES(R)
24X10-12
POWER STEERING
-
